100G optical module
QSFP28 ZR DWDM
The QSFP28 ZR DWDM optical module features a 4x25G electrical interface, equipped with cooled EML transmitters and PIN receivers, and utilizes an LC connector. It consumes ≤5W of power, operates on 3.3V供电, and functions within a temperature range of 0~70℃. The module supports Digital Diagnostics Monitor (DDM) functionality and incorporates Soft Forward Error Correction (SFEC), making it suitable for data center interconnects and achieving transmission distances of up to 80Km over G.652 single-mode fiber.

Product Features

•Hot pluggable QSFP28 MSA form factor
•Up to 80km reach for G.652 SMF with transport white box
•Single +3.3V power supply
•Temperature Range 0 to 70℃
•Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
•Receiver: 2*27.5Gbaud/s Pin-PD ROSA
•4*25G CAUI4 electrical interface
•Integrated SFEC with high coding gain
•PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
•Dual CS adaptor
•Compatible with RoHS6

Use Cases

High bandwidth connectivity for Data Center Interconnection

High bandwidth connectivity for Data Center Interconnection

100G Ethernet Metro-Access over DWDM

100G Ethernet Metro-Access over DWDM

P to P Access Network

P to P Access Network

Product Specifications

Product Name：

QSFP28 ZR DWDM

Center Wavelength(nm)

DWDM

Reach

80Km

Tx Power(dBm)

﹣1~ 4dBm

Sensitivity

≤-12.5dBm@4E-3

Temp(℃)

0 ~ 70℃

Consumption

＜4W

Product Comparison

  • Product One

  • Product Two

  • Product Three

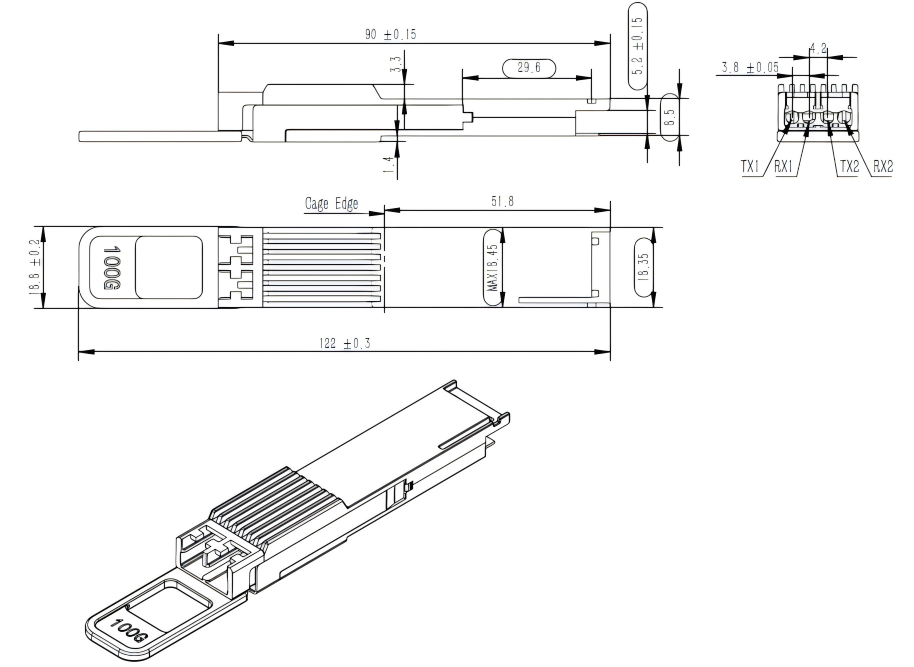

Dimensions of 100G optical modules
