100G optical module
QSFP28 ER4 (PIN+SOA)
The QSFP28 ER4 (PIN+SOA) optical module features a 4x25G electrical interface and is equipped with cooled LAN WDM DML transmitters and APD receivers, featuring an LC interface. It consumes less than 4.5W of power, operates on 3.3V, and functions within a temperature range of 0°C to 70°C. The module supports Digital Diagnostics Monitor (DDM) functionality and is suitable for 100GBASE-ER4 Ethernet applications, achieving a transmission distance of up to 40km over G.652 single-mode fiber with FEC. Dtuy

Product Features

•Up to 40km reach for G.652 SMF with FEC
•Cooled 4x25Gb/s LAN WDM DML TOSA with optical MUX
•High Sensitivity APD and TIA
•4x25G Electrical Interface
•Single +3.3V power supply
•DDM function implemented
•2 Wire Serial Interface for module management
•Maximum power dissipation<4.5W
•Operating temperature range: 0℃ ~ 70℃
•Compliant with RoHS6

Use Cases

100GBASE-ER4 Ethernet

100GBASE-ER4 Ethernet

100G Datacom& Telecom connections

100G Datacom& Telecom connections

100G 4WDM-40

100G 4WDM-40

Product Specifications

Product Name：

QSFP28 ER4 (PIN+SOA)

Center Wavelength(nm)

1294.53 – 1296.59

1299.02 – 1301.09

1303.54 – 1305.63

1308.09 – 1310.19

Reach

40Km

Tx Power(dBm)

﹣2.9~ 2.9dBm

Sensitivity

≤-20.9dBm@5E-5

Temp(℃)

0 ~ 70℃

Consumption

＜5.5W

Product Comparison

  • Product One

  • Product Two

  • Product Three

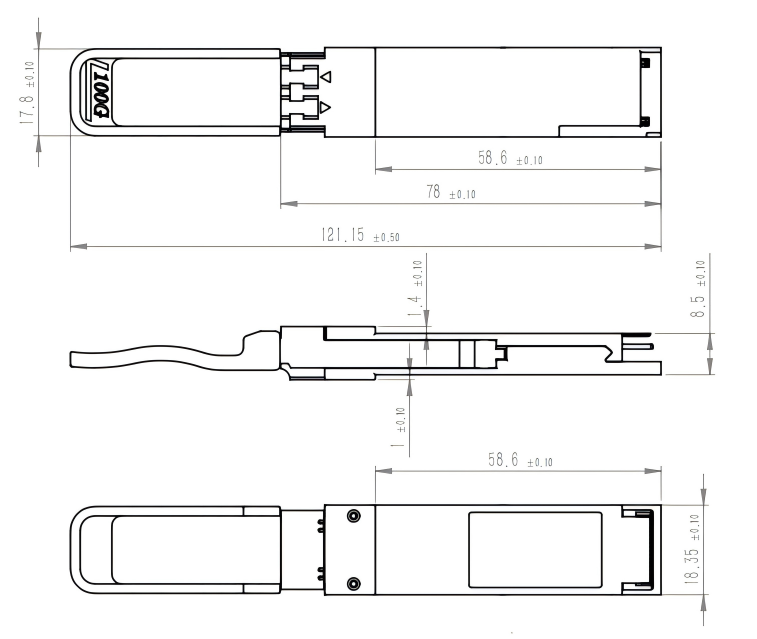

Dimensions of 100G optical modules
