200G optical module
QSFP56 SR4 AOC
The QSFP56 SR4 AOC optical module employs PAM4 modulation, delivering a data rate of up to 50 Gbps per lane, and features an MPO-12 connector. This module consumes less than 5 watts per end, operates on a +3.3V power supply, and functions within a temperature range of 0 to 70°C. It supports hot-plug capability and Digital Diagnostics Monitor (DDM) functionality. Suitable for data centers and other applications, it adheres to multiple standards and supports a transmission distance of up to 30 meters.

Product Features

•Up to 50Gbps data rate per channel by PAM4 modulation
•4 duplex channels transmitters and receivers
•Single MPO-12 connector receptacle optical interface compliant
•Single +3.3V power supply
•DDM function implemented
•Hot-pluggable QSFP56 form factor
•Low power dissipation: <5W( per end)
•International class 1 laser safety certified
•Operating temperature range: 0℃ ~+70 ℃
•Compliant with ROHS10

Use Cases

Switch & Router Connections

Switch & Router Connections

Data Centers

Data Centers

Other 200G Interconnect

Other 200G Interconnect

Product Specifications

Product Name：

QSFP56 SR4 AOC

Center Wavelength(nm)

/

Reach

100m

Tx Power(dBm)

/

Sensitivity

2.4E-4(PER)

Temp(℃)

0 ~ 70℃

Consumption

＜5W

Product Comparison

  • Product One

  • Product Two

  • Product Three

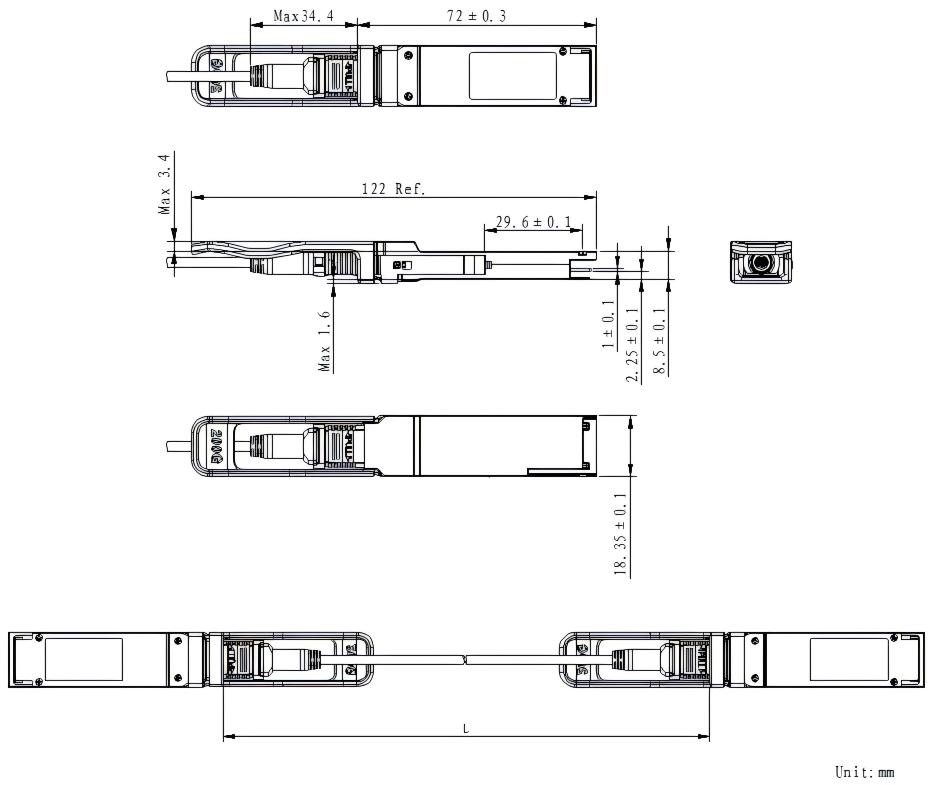

dimensions of a 200G optical module
