200G optical module
QSFP56 FR4
The QSFP56 FR4 optical module employs PAM4 modulation, with a single-channel data rate of 50 Gbps. It integrates CWDM laser and detector arrays and features an LC/UPC interface. This module consumes less than 6.5W of power, operates on +3.3V supply voltage, and functions within a temperature range of 0 to 70°C. It supports hot-plug and Digital Diagnostics Monitor (DDM) functionality. Suitable for applications such as connecting switches and routers, it can transmit data up to 2 km over single-mode fiber.

Product Features

•Up to 50 Gbps data rate per channel by PAM4 modulation
•4 duplex channels transmitters and receivers
•Integrated CWDM LD and PD array
•LC/UPC connecting interface compliant
•Single +3.3V power supply
•DDM function implemented
•Hot-pluggable QSFP56 form factor
•Transmission length up to 2km
•Low power dissipation:<6.5w
•International class 1 laser safety certified
•Operating temperature range: 0℃ ~ +70 ℃
•Compliant with ROHS10

Use Cases

Switch & Router Connections

Switch & Router Connections

Data Centers

Data Centers

Other 200G Interconnect Requirement

Other 200G Interconnect Requirement

Product Specifications

Product Name：

QSFP56 FR4

Center Wavelength(nm)

1271

1291

1311

1331

Reach

2Km

Tx Power(dBm)

﹣4.2 ~ 4.7dBm

Sensitivity

≤-6dBm

Temp(℃)

0 ~ 70℃

Consumption

＜6.5W

Product Comparison

  • Product One

  • Product Two

  • Product Three

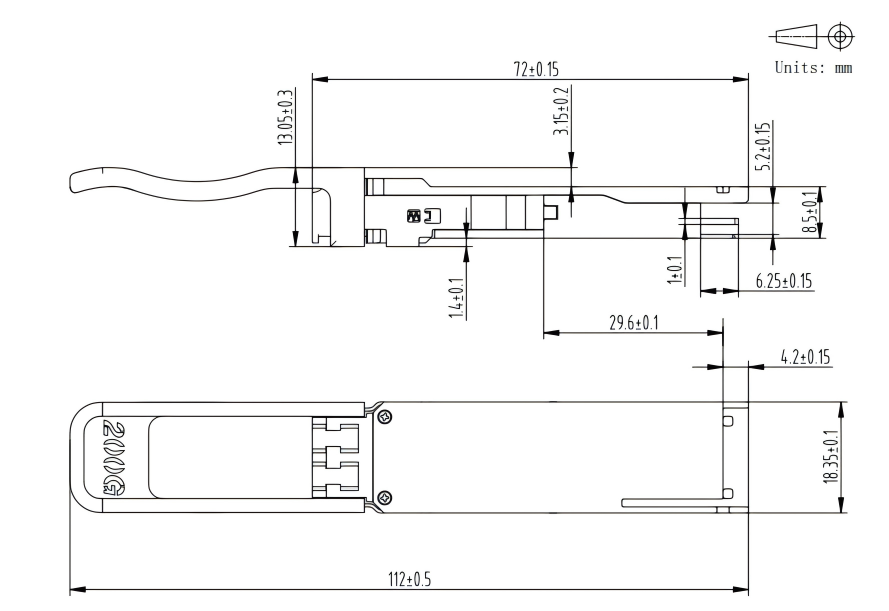

dimensions of a 200G optical module
