400G optical module
OSFP-VR4
The OSFP-VR4 optical module employs PAM4 modulation, with a single-channel data rate of 106.25 Gbps. It integrates an 850nm VCSEL and PD array, and features a 4x106.25Gb/s electrical interface. The module supports hot-pluggable operation, with a power consumption of ≤9W, powered by +3.3V, and operates within a temperature range of 0 to 70°C. It complies with OSFP MSA 5.0 and other standards, making it suitable for data centers, capable of transmitting over 50 meters on OM4 fiber and 30 meters on OM3 fiber.

Product Features

•Up to 106.25 Gbps data rate per channel by PAM4 modulation
•Integrated 850nm VCSEL array and PD array
•4x106. 25Gb/s electrical interface (400GAUI-4)
•Hot-pluggable
•Compliant to OSFP MSA 5.0
•Compliant with CMIS 4.0
•Maximum power consumption 9W
•Single +3.3V power supply
•Case temperature range: 0 ~ +70℃
•RoHS 2.0 complaint

Use Cases

Data centers and Cloud

Data centers and Cloud

Switch & Router Connections

Switch & Router Connections

Product Specifications

Product Name：

OSFP-VR4

Center Wavelength(nm)

850

Reach

50m

Tx Power(dBm)

﹣4.6 ~ 4dBm

Sensitivity

﹣6.4+TECQ@1.8<TECQ≦4.4dB

Temp(℃)

0 ~ 70℃

Consumption

＜9W

Product Comparison

  • Product One

  • Product Two

  • Product Three

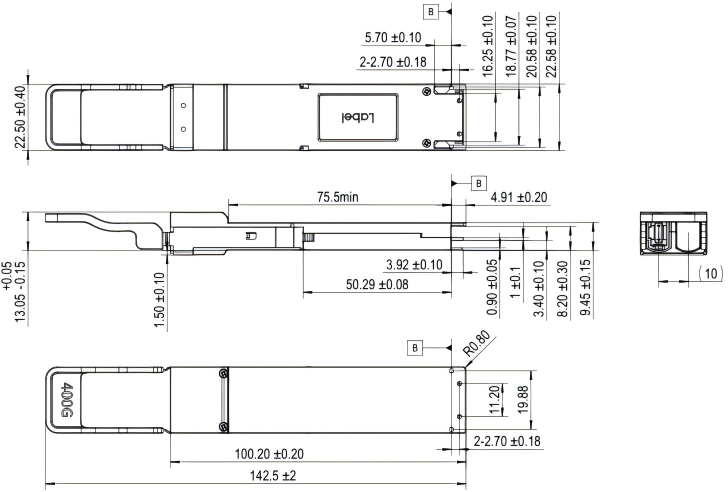

Dimension of 400G optical modules

Recommended for You

400G optical module
QSFP-DD XDR4

QSFP-DD XDR4 Optical Module with 4x106.25Gbps PAM4 lanes and 8x53.125Gbps electrical interfaces, featuring an MPO-12 connector. Power consumption ≤8W, powered by 3.3V, and operates in a temperature range of 0~70℃. Compliant with QSFP-DD MSA rev4.0 and other standards, it is suitable for 400GE data center applications, supporting single-mode fiber transmission up to 2Km.

400G optical module
QSFP-DD LR4

The QSFP-DD LR4 optical module employs 4x106.25Gbps PAM4 parallel channels and LC duplex interfaces, with a power consumption of ≤9W, 3.3V power supply, and an operating temperature range of 0 to 70°C. It complies with QSFP-DD MSA rev5.0 and is suitable for 400G Ethernet, supporting single-mode fiber transmission over 10Km.

400G optical module
QSFP-DD SR8

The QSFP-DD SR8 optical module is an 8-channel full-duplex module with a total data rate of 425Gbps, featuring an MPO-16/APC connector. It consumes ≤10W of power, operates on 3.3V, and is designed for an operating temperature range of 0 to 70°C. Compliant with QSFP-DD MSA standards, it is suitable for 400G Ethernet applications, supporting transmission distances of 70 meters over OM3 fiber and 100 meters over OM4/OM5 fiber.

400G optical module
QSFP-DD DR4

The QSFP-DD DR4 optical module features 8x53.125Gbps PAM4 electrical interfaces and an MPO-12 connector, with a power consumption of ≤12W, 3.3V power supply, and an operating temperature range of 0 to 70°C. It complies with the QSFP-DD MSA rev4.0 and is designed for 400GE links in data centers, supporting single-mode fiber transmission up to 500 meters.

400G optical module
QSFP-DD DAC

QSFP-DD DAC cables support a total data rate of 400Gbps (PAM4) and utilize 28/30AWG wiring with a 76-pin edge connector. They operate on 3.3V power and function within a temperature range of 0 to 70°C. Compliant with IEEE 802.3bj/cd and RoHS standards, these modules are ideal for data centers and other applications, supporting direct attach and branch configurations.

40G optical module
QSFP+LX4

The QSFP+ LX4 optical module features 4x10G electrical interfaces and LC connectors, with a power consumption of less than 3.5W. It operates within a temperature range of 0 to 70°C and supports Digital Diagnostics Monitoring (DDM). It can transmit up to 2 kilometers over single-mode fiber (SMF), 100 meters over OM3, and 150 meters over OM4.
