800G optical module
QSFP-DD DR8+MPO16
The QSFP-DD DR8+MPO16 optical module employs PAM4 modulation, achieving a single-channel data rate of 106.25 Gbps, and features 8x100G PAM4 EML lasers with an MPO-16 interface. This module supports hot-swapping, with a power consumption of less than 16W and operates at +3.3V. It is designed for an operating temperature range of 0 to 70°C and complies with CMIS Rev 5.1 and RoHS 2.0 standards. It is suitable for applications such as 800GBASE-DR8 Ethernet, with a single-mode fiber transmission distance of up to 2 kilometers.

Product Features

•Up to 106.25 Gbps data rate per channel by PAM4 modulation
•8 duplex channels transmitters and receivers
•8×100G PAM4 EML lasers
•Single MPO-16 connector receptacle optical interface compliant
•Single +3.3V power supply
•DDM function implemented
•Hot-pluggable QSFP-DD800 form factor
•Maximum link length of 2km on SMF fiber
•Low power dissipation: <16W
•International class 1 laser safety certified
•Operating temperature range: 0℃ ~ +70℃
•CMIS Rev 5.1 or later version
•Compliant with ROHS2.0

Use Cases

800GBASE-DR8+ Ethernet

800GBASE-DR8+ Ethernet

Switch & Router Connections

Switch & Router Connections

Data Centers

Data Centers

Other 800G Interconnect Requirement

Other 800G Interconnect Requirement

Product Specifications

Product Name：

QSFP-DD DR8+MPO16

Center Wavelength(nm)

1311

Reach

2Km

Tx Power(dBm)

﹣3.1 ~ 4dBm

Sensitivity

< -4.5dBm@2E-4

Temp(℃)

0 ~ 70℃

Consumption

＜16W

Product Comparison

  • Product One

  • Product Two

  • Product Three

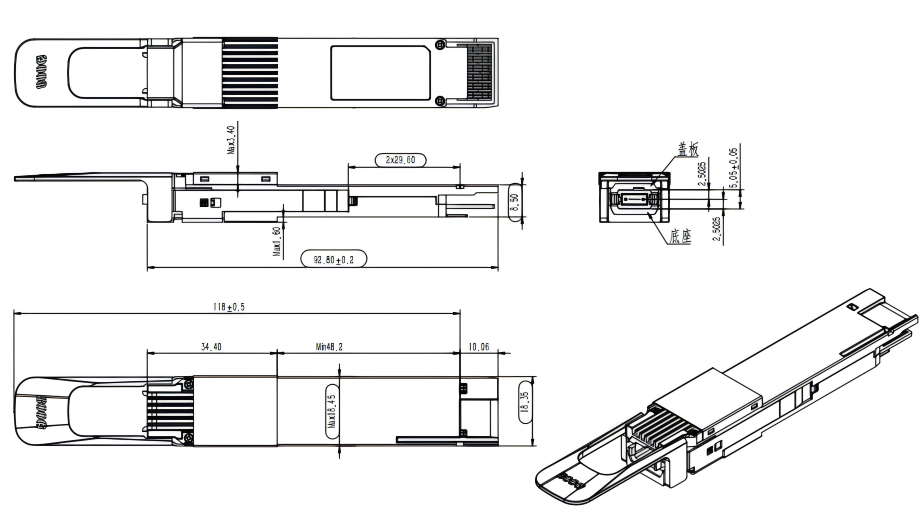

800G optical module dimensions
